Details Images

Trailer Model

car carry trailer

Overall Dimension(L x W x H)(mm)

20000×2600×4200mm

capacity

10 - 12 units vehicles

Axle Brand

13T×3pcs

Axle Number

Three

Axle load

13000kg X 3

Suspension system

Standard Mechanical suspension

The material of Main beam

The height of the beam is 500 mm, top 10mm,middle 6mm,bottom 12mm;T700 high strength steel

Tire Type and quantity

Chinese brand Tire 12R22.5

6 pcs.

rim

9.0×22.5

Traction Pin

2",diameter 50.8 mm ,loading 16 ton

Tool Box

1 Standard

Landing Gear

standard 28 ton

Electrical system

1. Voltage: 24v

2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Color

According to customer's requirement

Packing

Polish with wax before shipping

Noted

1.Top platform can be adjusted up and down by hydro-cylinder and chain block, totally 4 pcs of cylinder in each trailer

2. The roof of trailer can be down about 20cm.We can control by hand when go through limited high place as bridge or some thing.

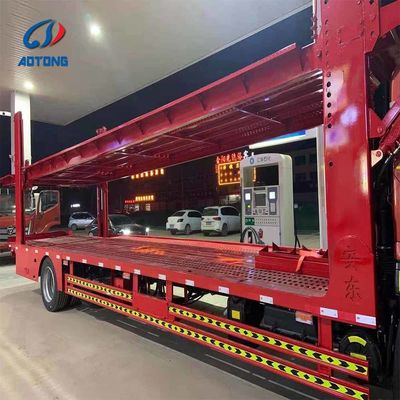

3-Axle 13T Car Carrier Semi Trailer with 500mm Main Beam 0

3-Axle 13T Car Carrier Semi Trailer with 500mm Main Beam 1

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.

Etiquetas:

low bed semi trailer,

Detalhes dos produtos

produtos

Semi-reboque de cama baixa

Semi-reboque de contentor

Reboque da parede lateral semi

Semi-reboque de transporte de veículos

Semi-reboque de descarga/derrapagem

Semi-reboque lateral Van&Curtain

Cerca Semi Trailer

Semi-reboque para transporte de animais

do petroleiro reboque semi

Reboque agrícola e outro reboque completo

Carrinho de lixo Howo

cabeça do trator

Trailer especial

Peças sobressalentes de reboque

Veículos novos da energia

Veículos especiais

3-Axle 13T Car Carrier Semi Trailer with 500mm Main Beam

Quantidade mínima:	1 unidade
embalagem padrão:	Padrão de exportação
Período de entrega:	25 dias
método de pagamento:	T/T.

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem

China

Marca

AOTONG

Certificação

ISO,CCC

Suspensão:

Suspensão mecânica ou aérea

Especificações dos pneus:

12R22.5

Feixe principal:

Pesado eu raio.

Pino de parentes:

2 '' '/3.5' 'Tipo de parafuso

Sistema de frenagem:

Câmara de ar dupla, válvula de freio, tanques de ar 45L; abdom

Elétrica:

Luz LED, 7 maneiras, 24V

Pintura:

Explosão e ferrugem limpa, 1 camada de pintura primitiva, 2 camada de pintura de acabamento

Quantidade de ordem mínima:

1 unidade

Detalhes da embalagem:

Padrão de exportação

Tempo de entrega:

25 dias

Termos de pagamento:

T/T.

Destacar

13T car carrier semi trailer

3-axle lowbed semi trailer

500mm main beam trailer
