Specifications
Dimension	12400mm2610mm1550mm
Payload	50T
Tare weight	About 7.5T
Box Body Dimension	12280mm2300mm600mm
Box Body	Floor steel sheet 2.5mm, side wall steel sheet 1.2mm
Twist lock	12uints
Chassis
Main beam	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Frame Beam	Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 480mm
Frame Floor	The Thickness is 3mm pattern
Axle	3 axles, 13Ton Fuwa brand 16ton brake pads
Landing Gear	28T lifting capacity with two speed
King Pin	2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension reinforced type
Leaf Spring	90mm(W)13mm(T)10 Layer
Pneumatic Braking System	Dual line pneumatic brake system,T30 air chamber ,40L air tanks, Emergency relay valve
Rim	9.0-20*12 pcs
Tire	12R22.5*12 pcs
Accessories	One standard tool box
Spare tire rack	One
Electrical system	24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights
Electrical system	conform to European standard, rear front and side reflectors
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

40ft 4-Axle Fence Semi Trailer with 600mm Cargo Transport 0

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.

Etiquetas:

fence trailer,

Detalhes dos produtos

produtos

Semi-reboque de cama baixa

Semi-reboque de contentor

Reboque da parede lateral semi

Semi-reboque de transporte de veículos

Semi-reboque de descarga/derrapagem

Semi-reboque lateral Van&Curtain

Cerca Semi Trailer

Semi-reboque para transporte de animais

do petroleiro reboque semi

Reboque agrícola e outro reboque completo

Carrinho de lixo Howo

cabeça do trator

Trailer especial

Peças sobressalentes de reboque

Veículos novos da energia

Veículos especiais

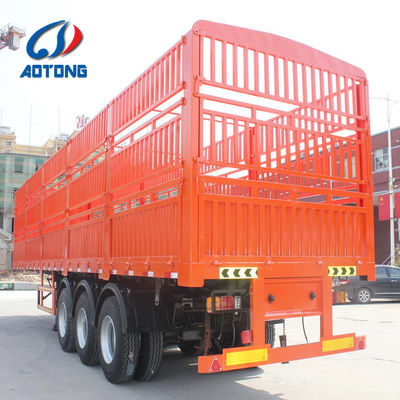

40ft 4-Axle Fence Semi Trailer with 600mm Cargo Transport

Quantidade mínima:	1 unidade
embalagem padrão:	Normas de exportação
Período de entrega:	25 dias
método de pagamento:	T/T

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem

China

Marca

AOTONG

Certificação

ISO,CCC

Suspensão:

Suspensão mecânica ou pneumática

Especificações do pneumático:

12R22.5

Feixe principal:

Carga pesada, eu teleporto-me.

Pin de parentesco:

Tipo de parafuso 2/3.5

Sistema de travagem:

Câmara de ar dupla, válvula de travagem, reservatórios de ar de 45L; ABS opcional

Elétrica:

Luz LED, 7 vias, 24V

Pintura:

Explosão e limpeza da ferrugem, 1 camada de pintura de primeira qualidade, 2 camadas de pintura de a

Quantidade de ordem mínima:

1 unidade

Detalhes da embalagem:

Normas de exportação

Tempo de entrega:

25 dias

Termos de pagamento:

T/T

Destacar

40ft fence semi trailer with 600mm cargo

4-axle fence semi trailer for transport

heavy duty fence semi trailer with warranty
