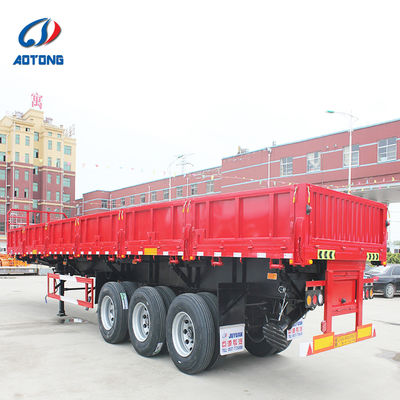

30T-80T Side Wall Semi Trailer with Mechanical or Air Suspension

Quantidade mínima:	1 unidade
embalagem padrão:	Padrão de exportação
Período de entrega:	25 dias
método de pagamento:	T/T.

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem

China

Marca

AOTONG

Certificação

ISO,CCC

Suspensão:

Suspensão mecânica ou aérea

Especificações dos pneus:

12R22.5

Feixe principal:

Pesado eu raio.

Pino de parentes:

2 '' '/3.5' 'Tipo de parafuso

Sistema de frenagem:

Câmara de ar dupla, válvula de freio, tanques de ar 45L; abdom

Elétrica:

Luz LED, 7 maneiras, 24V

Pintura:

Explosão e ferrugem limpa, 1 camada de pintura primitiva, 2 camada de pintura de acabamento

Destacar:

30T-80T side wall semi trailer

mechanical suspension semi trailer

air suspension side wall trailer

Descrição do produto

Size	13000mm2500mm3000mm (Optional)
Payload	30-80T (Optional)
Main beam	Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam	16# channel steel (Optional)
Cross member	10# channel steel (Optional)
Floor	3mm checkered plate (Optional)
Side wall	Height 600mm thickness 1.5mm (Optional)
Front board	Height 1.5m (Optional)
Axle	3 axle FUWA brand 13T (Optional)
Suspension	Mechanical suspension American type(Optional)
Leaf spring	Leaf spring 10pcs9013mm (Optional)
Tire	12R22.5 12pcs (Brand and specs Optional)
Wheel rim	9.0-22.5 12pcs (Brand and specs Optional)
Kingpin	2”/3.5” bolt-in /welded king pin
Landing gear	Two-speed, manual operating ,heavy duty landing gear 28T
Twist lock	Optional
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2coats of final paint

The semi-trailer is suitable for transporting goods of different sizes and shapes, which can be used as a pallet truck to load goods, and can also adapt to the needs of different scenarios to carry containers.

The container rail-plate semi-trailer uses a strong body structure and support system, which can carry

large cargo weights. Through reasonable design and optimization, while improving the load capacity, it also ensures the stability
and driving safety of the vehicle.

30T-80T Side Wall Semi Trailer with Mechanical or Air Suspension 0

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
