Main specification of 2 axles container skeleton semi trailer
Model	20ft skeleton semi trailer
Overall dimensions	7500x2500x1550 mm
Loading weight	40,000 kg
Tare weight	6.350 kg
Container twist lock	12 pcs
Main beam	Q345B carbon steel The height of the beam is 500mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm
Side beam	Q235 16mm channel steel
Platform thickness	3 mm diamond plate
Axle brand	13 ton FUWA Brand axle
Axle number	2
Landing gear	Standard 28 ton
Suspension system	Mechanical leaf spring suspension
Steel spring	10/10 90mm(width)13mm(thickness)10 layers
Kingpin	50mm or 90mm
Tire	12R22.5 tubeless tire
Tire quantity	8
Brake system	Dual line braking system, no ABS
Brake chamber	6 double chamber
Light	Tail lamp with turn signal, brake light & reflector, side lamp, etc
Painting	Complet chassis sand blasting to clean rust, one coat anti-rust prime, two coats final paint, color as customer's requirement

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.

Etiquetas:

shipping container semi trailer,

Detalhes dos produtos

produtos

Semi-reboque de cama baixa

Semi-reboque de contentor

Reboque da parede lateral semi

Semi-reboque de transporte de veículos

Semi-reboque de descarga/derrapagem

Semi-reboque lateral Van&Curtain

Cerca Semi Trailer

Semi-reboque para transporte de animais

do petroleiro reboque semi

Reboque agrícola e outro reboque completo

Carrinho de lixo Howo

cabeça do trator

Trailer especial

Peças sobressalentes de reboque

Veículos novos da energia

Veículos especiais

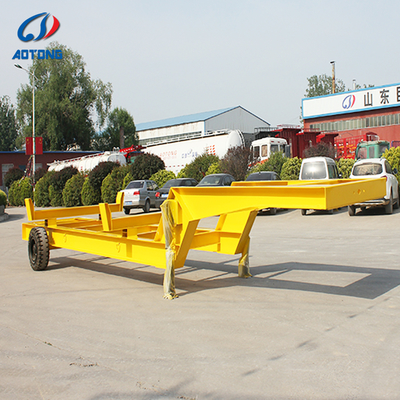

20ft 40ft 45ft Steel Container Chassis Semi Trailer with Mechanical Air Suspension

Quantidade mínima:	1 UNIT
embalagem padrão:	Export standard
Período de entrega:	25 days
método de pagamento:	T/T

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Place of Origin

CHINA

Marca

AOTONG

Certificação

ISO,CCC

Suspension:

Mechanical Or Air Suspension

Tyre Specifications:

12R22.5

Main beam:

Heavy duty I beam.

Kin pin:

2’’/3.5’’ bolt type

Braking system:

Double air chamber ,brake valve,45L air tanks ;ABS optional

Electrical:

LED light , 7 ways ,24V

Painting:

Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting

Minimum Order Quantity:

1 UNIT

Packaging Details:

Export standard

Delivery Time:

25 days

Payment Terms:

T/T
